TW88xx - In-Car LCD
Display Processors |
| |

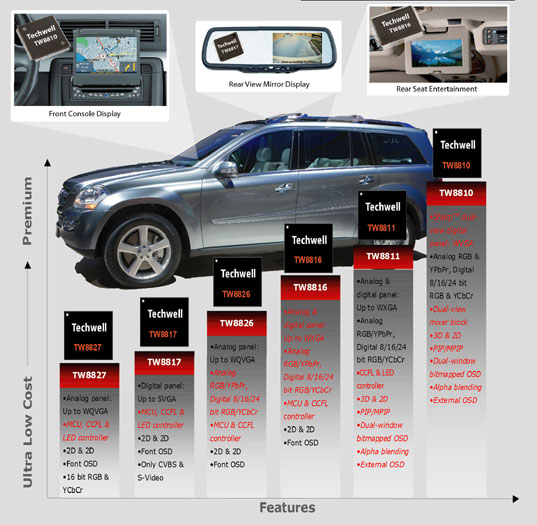

TW88xx is a highly integrated LCD TV processor with
video decoder for LCD TV, Portable DVD and Car Display
applications. TW88xx leverages Techwell's TW99xx video
decoder technology and supports worldwide analog
broadcast TV as well as all popular video formats. With
built in scaling, de-interlacing and on-screen-display,
the TW88xx can support up to SXGA LCD
panels.
|
|
|
| TW8804 |
TW8804
Brochure |
5/2006 |
168KB |
| TW8806 |
TW8806
Brochure |
11/2006 |
140KB |
| TW8807 |
TW8807
Brochure |
1/2007 |
137KB |
| TW8810 |
TW8810
Brochure |
1/2008 |
120KB |
| TW8811 |
TW8811
Brochure |
1/2008 |
121KB |
| TW8816 |
TW8816
Brochure |
1/2008 |
119KB |
| TW8817 |
TW8817
Brochure |
1/2008 |
116KB |
| TW8826 |
TW8826
Brochure |
1/2008 |
120KB |
| TW8827 |
TW8827
Brochure |
1/2008 |
117KB |
|
|
| Product |
Description |
Brochure |
 |
| TW8804 > |
LCD Flat
Panel Controller with Integrated NTSC/PAL/SECAM Decoder
and Analog/Digital RGB/FB Input |
 PDF
|
| |
| TW8806 > |
LCD
Display Processors with built-in Video Decoder and
T-CON |
PDF |
| |
| TW8807 > |
LCD
Controller with Built-In Video Decoder and TCON for
analog LCD Panels |
PDF |
| |
| TW8810 > |
In-Car LCD
Display Processor for SHARP Dual View Panel |
PDF |
| |
| TW8811 > |
3D decoder
based on LCD controller with PIP, Graphic OSD &
CCFL/LED controller |
PDF |
| |
| TW8816 > |
Highly
integrated LCD controller with on-chip MCU & CCFL
controller |
PDF |
| |
| TW8817 > |
Low cost,
highly integrated LCD controller for digital LCD
panels |
PDF |
| |
| TW8826 > |
Ultra low
cost, highly integrated LCD controller for analog
panels |
PDF |
| |
| TW8827 > |
Ultra low
cost, highly integrated LCD controller for analog LCD
panels |
PDF |
| Features |
TW8804 |
TW8806 |
TW8807 |
TW8810 |
TW8811 |
| Input |
CVBS |
Yes |
Yes |
Yes |
Yes |
Yes |
| S-Video |
Yes |
Yes |
Yes |
Yes |
Yes |
| YPbPr (Up to
1080i) |
Yes |
Yes |
No |
Yes |
Yes |
| Scart |
Yes |
No |
No |
No |
No |
| Analog
RGB |
Yes |
Yes |
No |
Yes |
Yes |
| Digital RGB/Y
CbCr |
24 bit |
24 bit |
No |
24 bit |
24
bit |
| ADC |
27MHz |
27MHz |
27MHz |
80MHz |
80MHz |
| Display processing |
Comb
Filter |
2D |
2D |
2D |
3D |
3D |
| Max
Resolution |
SXGA |
WXGA |
WQVGA |
WXGA |
WXGA |
| De-Interlacer |
2D |
2D |
2D |
2D |
2D |
| Edge
Enhacement |
Yes |
Yes |
No |
Yes |
Yes |
| Color
Enhacement |
No |
Yes |
Yes |
Yes |
Yes |
| PIP |
No |
No |
No |
Yes |
Yes |
| OSD |
Type |
Font |
Font |
Font |
Graphic |
Graphic |
| Colors |
16 Color /
8-Bit |
16 Color /
8-Bit |
16 Color /
8-Bit |
256 Color /
24-Bit |
256 Color /
24-Bit |
| Output |
TCON |
Digital |
Digital &
Analog |
Analog |
No |
Digital &
Analog |
| Dual
View |
No |
No |
No |
Sharp |
No |
| LVDS |
No |
No |
No |
No |
No |
| TTL |
Yes |
Yes |
No |
Yes |
Yes |
| CVBS
Out |
Yes
(Y-Out) |
Yes
(Y-Out) |
Yes |
Yes |
Yes |
| Other |
Memory |
No |
No |
No |
Yes |
Yes |
| Package |
160
PQFP |
128
PQFP |
64
PQFP |
208
PQFP |
208
PQFP |
| Temp
Spec |
-40C to
85C |
-40C to
85C |
-40C to
85C |
-40C to
85C |
-40C to
85C |
|
